Flexible and scalable solutions to manage electrical loads in aeronautical systems, whether they be state-of-the-art or from previous generations

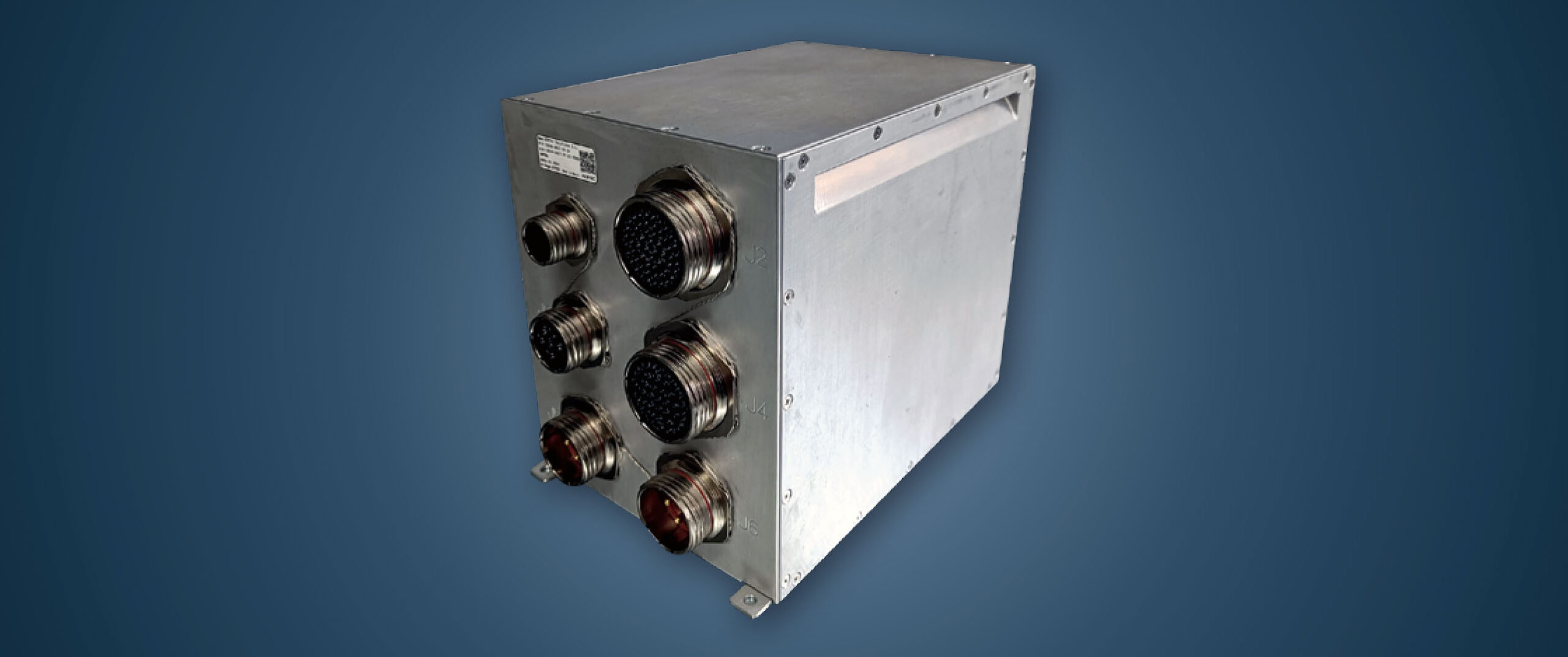

The PDU-DC solution is designed to ensure the efficient use of the aircraft’s power.
It is composed of a motherboard that controls nine independent power supply boards. The motherboard features a redundant/dual power supply (primary and auxiliary) that are hot-swappable between them (less than 500 μs), providing smooth, continuous power to the daughterboards without interruptions. Additionally, it has full-duplex redundant/dual RS-485 ports, to control the opening/closing of the solid-state power controllers.
It has a modular design, which allows you to configure the number of inputs/outputs and the power supply voltage.
Characteristics
- Based on solid-state power controller (SSPC) modules
- 28 VDC power inputs and outputs • Outputs configurable from 1 to 20 A
- Internal architecture with 1 motherboard and flexible daughterboards: 8 channels each, 72 outputs on the unit
- FPGA technology, no need for software or DO-178C documentation
- DO-254-compliant design
- Environmental rating: DO-160G (vibration, extreme temperatures, etc.)
- Electrical compatibility with MIL-STD-704 Aircraft electrical power characteristics
- MIL-DTL-38999 standard military connectors
- EMC compatibility according to the MIL-STD-883 standard
- EMC compatibility according to the MIL-PRF-810 standard
- Real-time internal voltage and current sensing, configurable I2t profiles
- Electrical status monitoring
- Dual/redundant RS-485 ports, full-duplex communication protocol
- Comprehensive integrated tests available (PBIT, IBIT, CBIT)
- No mechanical ventilation
Dimensions and weight
- Length: 200 mm
- Width: 160 mm
- Height: 230 mm
- Weight: < 4 kg
