MISSIONS / Mobile or static targets, GNSS denied, INS/GNSS navigation, SAL terminal guidance and choice of direction of attack on the target
The BAT (Bomb Wing Tactical) smart bomb is a high-precision, guided glide munition specifically designed to be integrated into unmanned aircraft (such as the SIRTAP tactical drone). The BAT allows you to switch between multi-purpose, anti-tank and anti-bunker warheads. Its in-flight weight is around 15 kilograms and each aerial system can hold up to four units under its wing anchors.
AERTEC is responsible for designing the vehicle that carries the bomb and the laser guidance system. Meanwhile, Instalaza is responsible for the entire cargo area, the warhead and the fuze.
Characteristics
- ITAR-free
- Multi-purpose/anti-tank/anti-bunker warhead
- In-flight weight < 76 kg
- Complies with: MIL-STD 870, MIL-STD 2705, MIL-STD 467
- MIL-STD 7553 communications protocol
Capabilities
- Flight speed 0.2-0.6 Mach
- Launch speed > 50 kts
- Maximum range (at 6000 m AGL) < 79 mi
- Operational altitude (AMSL) 0-25000 ft
Versatility
- Navigation: INS/GNSS
- Flight configurations: pure gliding or rocket engine-assisted
- Terminal guidance systems: SALS with FoV ± 77º and 2 mi range

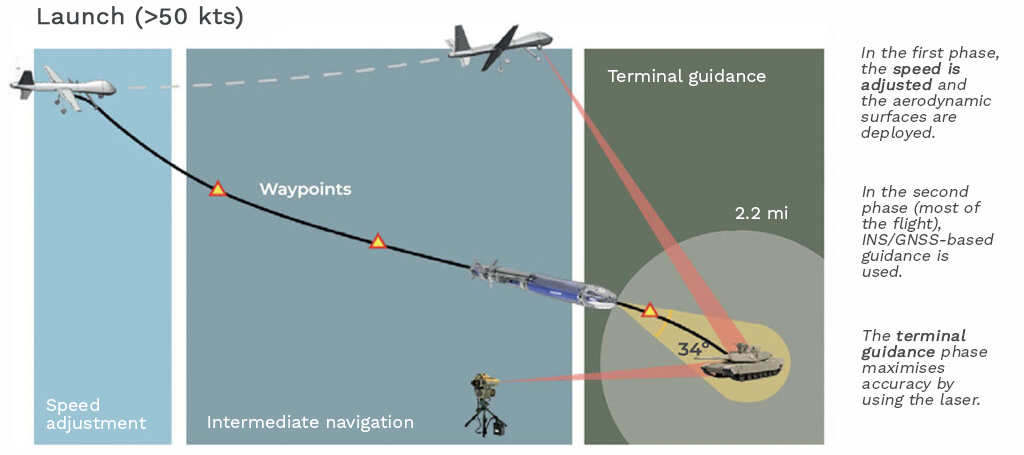

Flight phases
