Missile navigation and guidance systems are one of the basic technical pillars that define modern defence.
Modern missile navigation and guidance systems represent one of the most sophisticated and decisive fields of contemporary defense technology. In a strategic context marked by technological acceleration, the proliferation of asymmetric threats, and the growing complexity of operational scenarios, guidance has become the true intelligent core of the weapon. It is not just a matter of reaching a target, but of doing so with precision, discrimination, adaptability, and resilience in the face of increasingly advanced countermeasures.
Unlike early generations of missiles, whose success depended largely on predefined trajectories and constant operator intervention, current systems integrate multiple sensors, advanced algorithms, and real-time processing capabilities that allow the missile to “interpret” its environment. This evolution has transformed guidance into a dynamic system, capable of combining different sources of information—inertial, satellite, optical, infrared, or electromagnetic—to maintain accuracy even in degraded scenarios, with electronic interference, moving targets, or incomplete information.

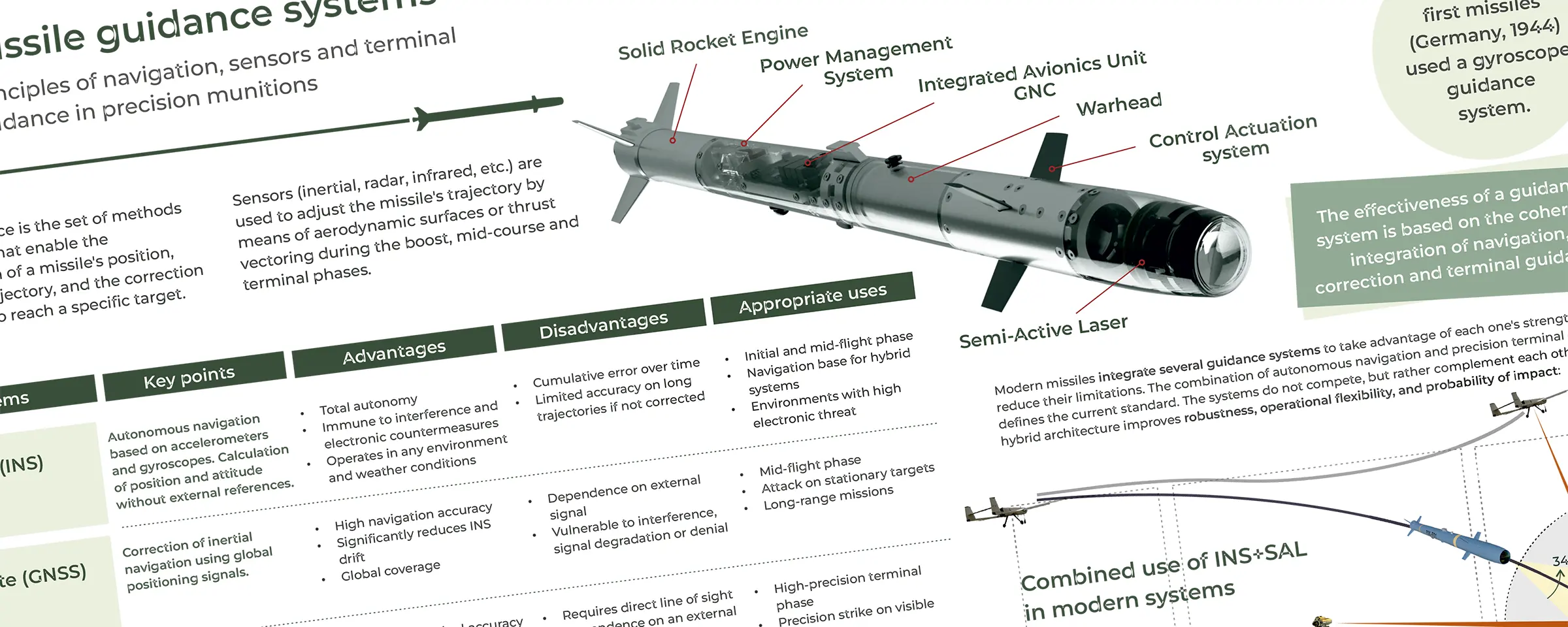

This infographic provides a structured and accessible overview of the main guidance methods used in modern missiles. It is worth emphasising that successful missile guidance lies in combining the different existing technologies appropriately, complementing the strengths of each depending on the objective being pursued. The combination of several guidance methods not only increases the probability of impact, but also improves the system's survivability against electronic countermeasures, decoys and deception techniques. In this sense, guidance is no longer an isolated subsystem, but an integrated part of a broader ecosystem that includes sensor networks, launch platforms and command and control systems.
The purpose of this infographic is to provide context, clarity, and insight into one of the technical pillars that define modern defence. Understanding guidance ultimately means understanding how engineering, technology, information, and decision-making converge in one of the most complex systems developed by today's defence industry.
